Shipbuilding apply cable power rail transfer trolleys
- Tel.: +86-373-3020456
- Mobile:+86-13849364134
- Fax: +86-373-3020456
- E-mail:alex@perfte.com
The cable supply electricity to the electrical control system of the transfer trolley. Then we operate the trolley, such as start, stop, forward & reverse,etc.
◆ Spring cable reel / magnetic cable drum/ motorized cable reel
◆ Under voltage / over voltage protection is provided into control panel.
◆ Transfer Trolley is equipped with Siren and Warning Lights.
◆ transfer car runs on straight, arc-shaped and ‘S’ railways
◆ Suitable for working in high temperature, explosive and flammable environment
◆ Easy operate, both remote controller and push button
◆ Cable powered, it is friendly to environment.
◆ To transfer heavy cargoes up to 300t
◆ To design length, width and height as per your needs
◆ No limit of working time

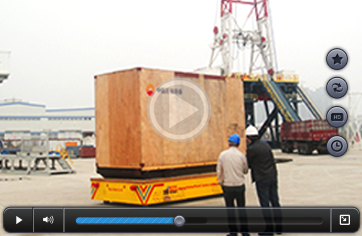

>> Product presentation



>> Features:
◆ Radio Remote Control is provided to move trolley.◆ Spring cable reel / magnetic cable drum/ motorized cable reel
◆ Under voltage / over voltage protection is provided into control panel.
◆ Transfer Trolley is equipped with Siren and Warning Lights.
>> Characters
◆ transfer car runs on straight, arc-shaped and ‘S’ railways
◆ Suitable for working in high temperature, explosive and flammable environment
◆ Easy operate, both remote controller and push button
◆ Cable powered, it is friendly to environment.
◆ To transfer heavy cargoes up to 300t
◆ To design length, width and height as per your needs
◆ No limit of working time
The transfer cart can be applied to assembly line for rigging equipment. They are also can be used in severe working situations, such as coal and mine industry, painting shops and blasting booth, etc.
Model |
KPJ-2t |
KPJ-40t |
KPJ-63t |
KPJ-80t |
KPJ-150t |
|
Rated load(t) |
2 |
40 |
63 |
80 |
150 |
|
Table size(mm) |
Length |
2000 |
5000 |
5600 |
6000 |
10000 |
Width |
1500 |
2500 |
2500 |
2600 |
3000 |
|
Height |
500 |
700 |
800 |
900 |
1200 |
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
Running speed(min) |
25 |
20 |
20 |
20 |
18 |
|
Running distance(m) |
25 |
50 |
50 |
50 |
50 |
|
Reference Weight(t) |
2.5 |
7.3 |
10.5 |
12.3 |
26.2 |
◆ We design and manufacture transfer cars to move just about anything you can imagine. You can transfer a few steel
◆ coils in a mill or locomotive across a trench. We can build for capacities of up to300 tons or more.
◆ Our line of transfer vehicles transport heavy material on rails, we are also capable of designing and manufacturing steerable transfer cart, which is running on concrete.
◆ coils in a mill or locomotive across a trench. We can build for capacities of up to300 tons or more.
◆ Our line of transfer vehicles transport heavy material on rails, we are also capable of designing and manufacturing steerable transfer cart, which is running on concrete.
